Kiwi Pi 5 Pro
Quad-core ARM 64-bit, 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz
USD $169.00 – $199.00
Fast shipping & 1W+ Sold
Fast shipping & 1W+ Sold Rockchip RK3588 Quad-Core A76+A55 ARM Mali-G610 MC4 , 6.0 TOPs NPU
∞
Sold
7x24 Hours
Technical Support
1 V 1
Service
Product Highlights:
- 8nm process, Quad-core ARM 64-bit, 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz
- ARM Mali-G610 MC4, embedded high performance 2D image acceleration module
- 6.0 TOPs NPU, enable various AI applications
- 8K video codec, 8K@60fps display out
- Linux 5.10 (option:Linux6.10), Android15/Ubuntu22.04/Debian11
Quote
Matching package
USD $239.00 – $278.99
Fast shipping & 1W+ Sold
USD $99.00 – $178.99
Fast Shipping & 1W+ Sold
USD $99.00 – $178.99
Fast shipping & 1W+ Sold
Kiwi Pi 5 Pro
Key features
- 8nm process, Quad-core ARM 64-bit, 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz
- ARM Mali-G610 MC4, embedded high performance 2D image acceleration module
- 6.0 TOPs NPU, enable various AI applications
- 8K video codec, 8K@60fps display out
- Rich Display Interface, multi-screen display
- Super 32MP ISP with with HDR&3DNR, multi-camera inputs
- Rich high-speed interfaces (PCIe, TYPE-C，SATA, Gigabit ethernet)
- Linux 5.10 (option:Linux6.10), Android12, Debian11, Ubuntu22.04

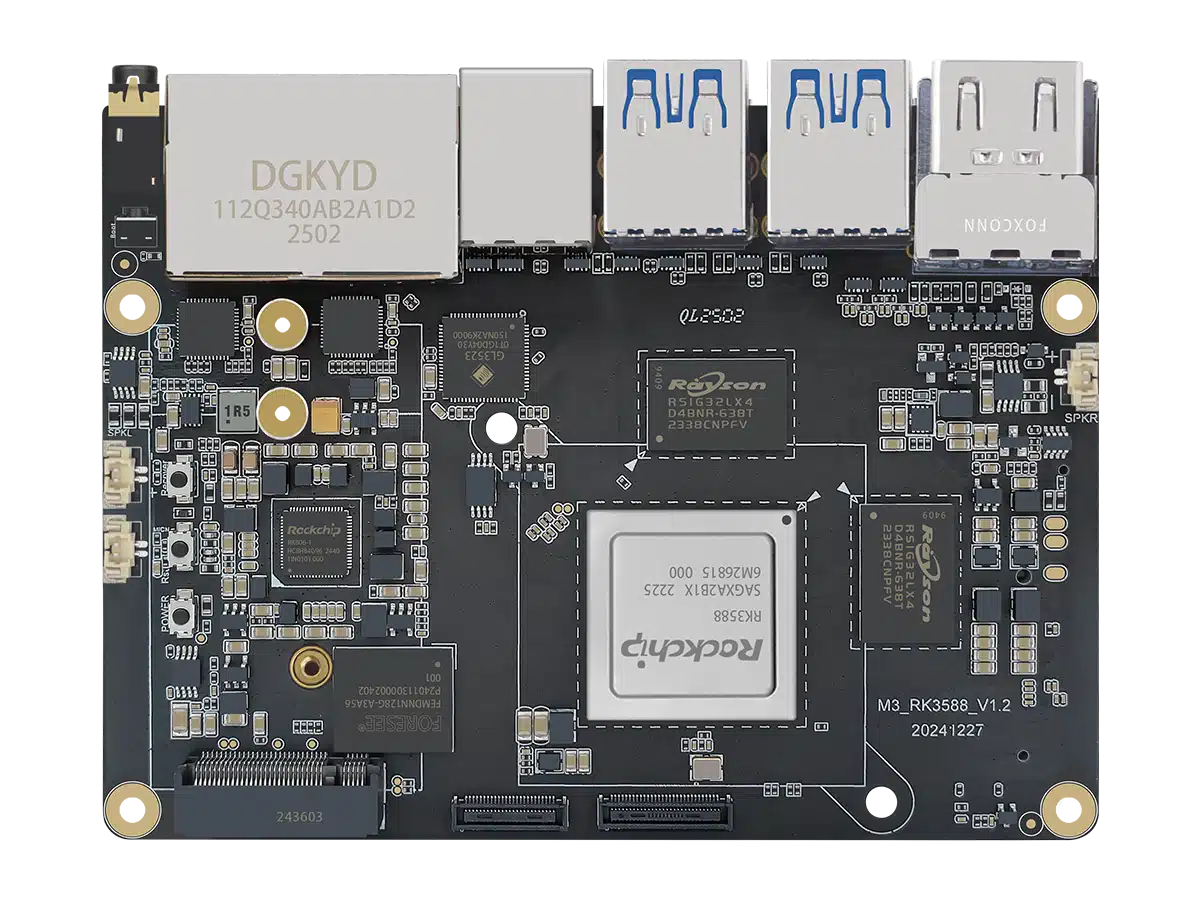

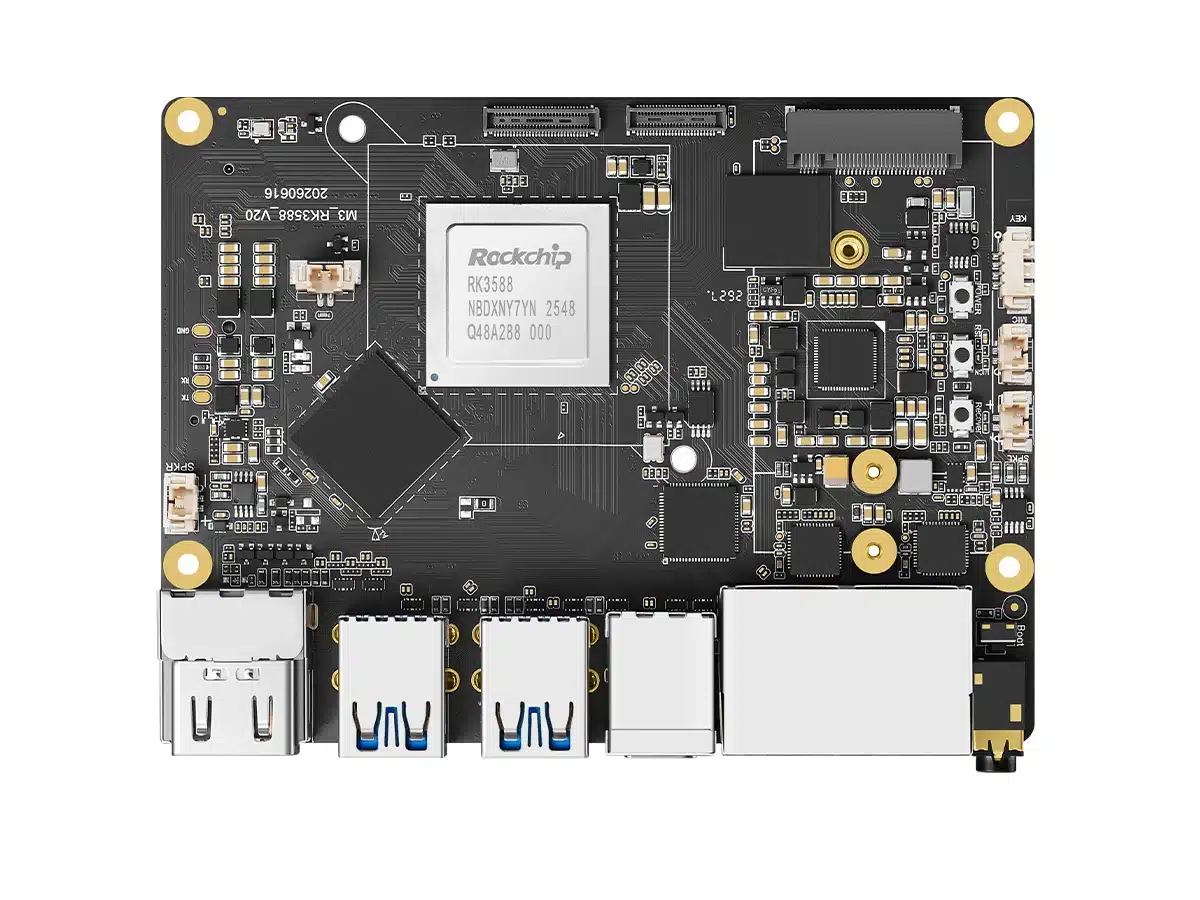

The Kiwi Pi 5 Pro is a cutting-edge single-board computer (SBC) designed for developers, hobbyists, and professionals seeking powerful performance for AI, multimedia, and embedded applications. Built with an advanced 8nm process, it delivers exceptional efficiency and speed, making it ideal for complex computing tasks, AI-driven projects, and high-resolution media processing.
The single-board computer Kiwi Pi 5 Pro is powered by the Rockchip RK3588, a flagship-grade processor designed for high-performance computing, AI acceleration, and ultra-HD multimedia applications. Below are the detailed hardware specifications that make this SBC a powerhouse for demanding workloads.
DETAIL SPEC
| CPU | Rockchip RK3588 Quad-core ARM 64-bit CPU 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz 8nm process |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2 High performance 2D image acceleration |
| NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications |
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264 Support 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding at the same time |
| DDR | LPDDR4X 8GB (option: 4/16/32GB) 2133MHz, 64-bit |
| eMMC5.1 | 128GB (option: 64/256/512GB) Support PCIe 3.0X4 M.2 2280 SSD hard drive expansion Support TF card expansion |
| USB | 1*Type-C (Full funtion:USB3.1-OTG,DP ALT,PD) 4*USB 3.0 Host |
| HDMI | HDM1*HDMI 2.1 (8K@60fps or 4K@120fps), 1*HDMI 2.0 input/output |
| Wireless | WiFi-6 2.4/5 IEEE802.11 a/b/g/n/ac/ax Bluetooth 5.4 BLE 2.4Ghz and 5Ghz band channels, 2T2R |
| Mobile Network | Support M.2 interface module Mobile EC200ACNLB-M.2 4G module Mobile RM500UCNVAA+ 5G module NANO SIM card interface |
| Ethernet | 2×2.5G RJ45 Ethernet |
| Audio | 3.5mm four segment headphone jack Support onboard microphone input interface Left and right dual speaker interface |
| RTC | Supports rechargeable button batteries |
| Button | Loader button Flashing button Reset button |
| Expansion IO | 60Pin extension interface: 2 * MIPI-CSI 4Lane input and its matching IO 50Pin expansion interface: 1 * MIPI-DSI 4Lane/DP 2Lane/USB2.0 and its supporting IO 39Pin extension interface: 1 * MIPI-DSI 4Lane and its supporting IO |
| OS | Linux 5.10 (option:Linux6.10) Android15/Ubuntu22.04/Debian11 |
| Power Supply | Type-C PD input/output, default boost 12V/2A Support mainstream fast charging and boosting protocols |
