M1
Rockchip RK3588 ARM Mini PC AI box with 6 Tops NPU & 8K Display
USD $169.00 – $204.90
Fast shipping & 1W+ Sold
Rockchip RK3588 Quad-Core A76+A55 ARM Mali-G610 MC4 , 6.0 TOPs NPU
∞
Sold
7x24 Hours
Technical Support
1 V 1
Service
Product Highlights:
- 8nm process, Quad-core ARM 64-bit, 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz
- ARM Mali-G610 MC4 , embedded high performance 2D image acceleration module
- 6.0 TOPs NPU, enable various AI applications
- 8K video codec, 8K@60fps display out
- Linux 5.10 (option:Linux6.10), Android12, Debian11, Ubuntu22.04
Matching package
USD $139.00 – $174.90
Fast shipping & 1W+ Sold
M1
Key features
- 8nm process, quad-core Cortex-A76 + quad-core Cortex-A55
- ARM Mali-G610 MC4 GPU, embedded high performance 2D image acceleration module
- 6.0 TOPs NPU, enable various AI applications
- 8K video codec, 8K@60fps display out
- Rich Display Interface, multi-screen display
- Super 32MP ISP with with HDR&3DNR, multi-camera inputs
- Rich high-speed interfaces (PCIe, TYPE-C，SATA, Gigabit ethernet)
- Linux 5.10 (option:Linux6.10)，Android 12 / Ubuntu22.04 / Debian11
DETAIL SPEC
| CPU | Rockchip RK3588, 8nm process Quad-core ARM 64-bit 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2. High performance 2D image acceleration |
| NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications |
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps encoding: H.265/H.264 Support 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding at the same time |
| DDR | 8GB LPDDR4X 2133MHz, 64-bit (option: 4/16/32GB) |
| eMMC5.1 | 128GB (option: 64/256/512GB) |

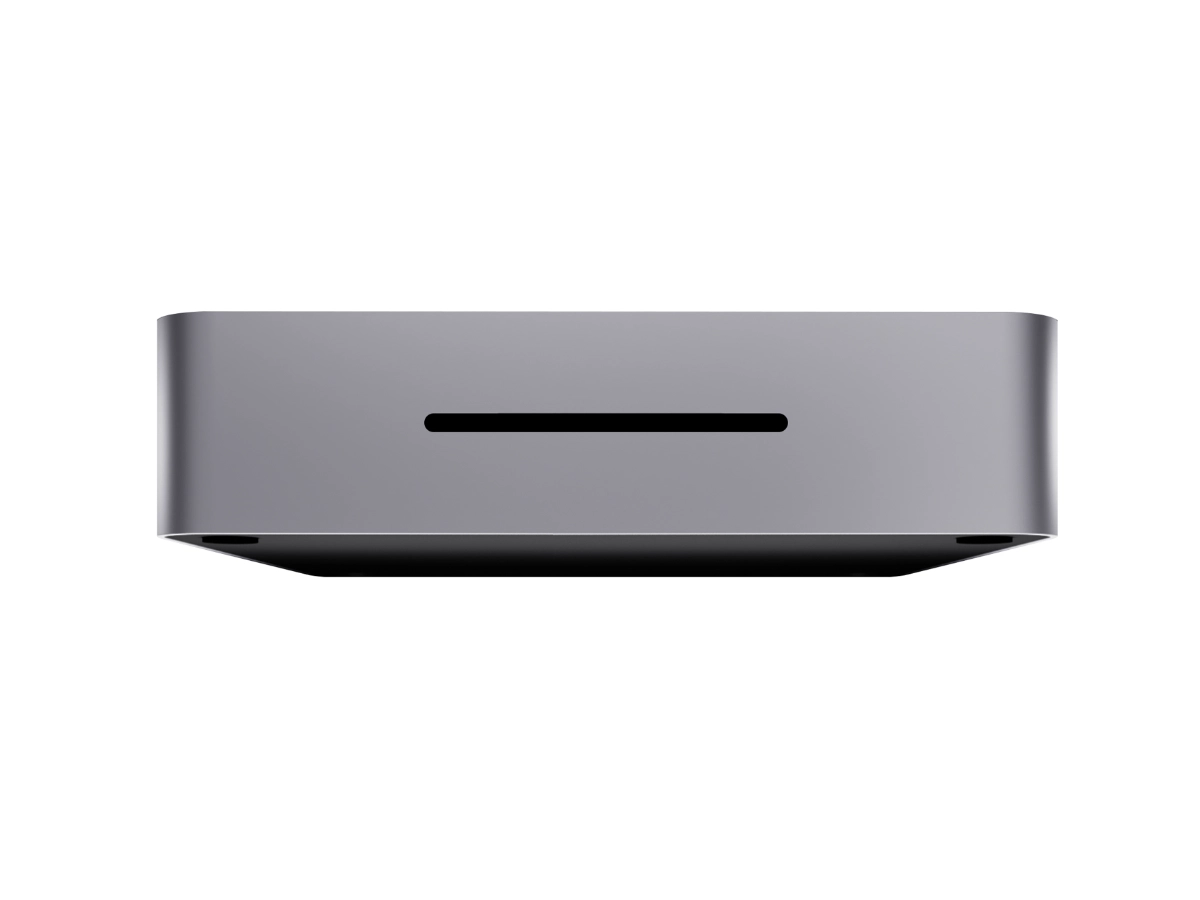

| Storage | PCIe3.0 M.2 slot inside, suport 2280 NVME SSD Mirco SD card slot inside, suport TF card storage expansion |

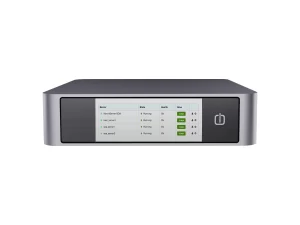

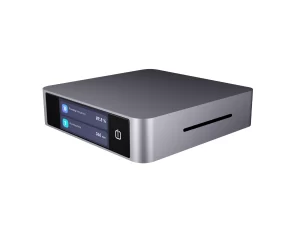

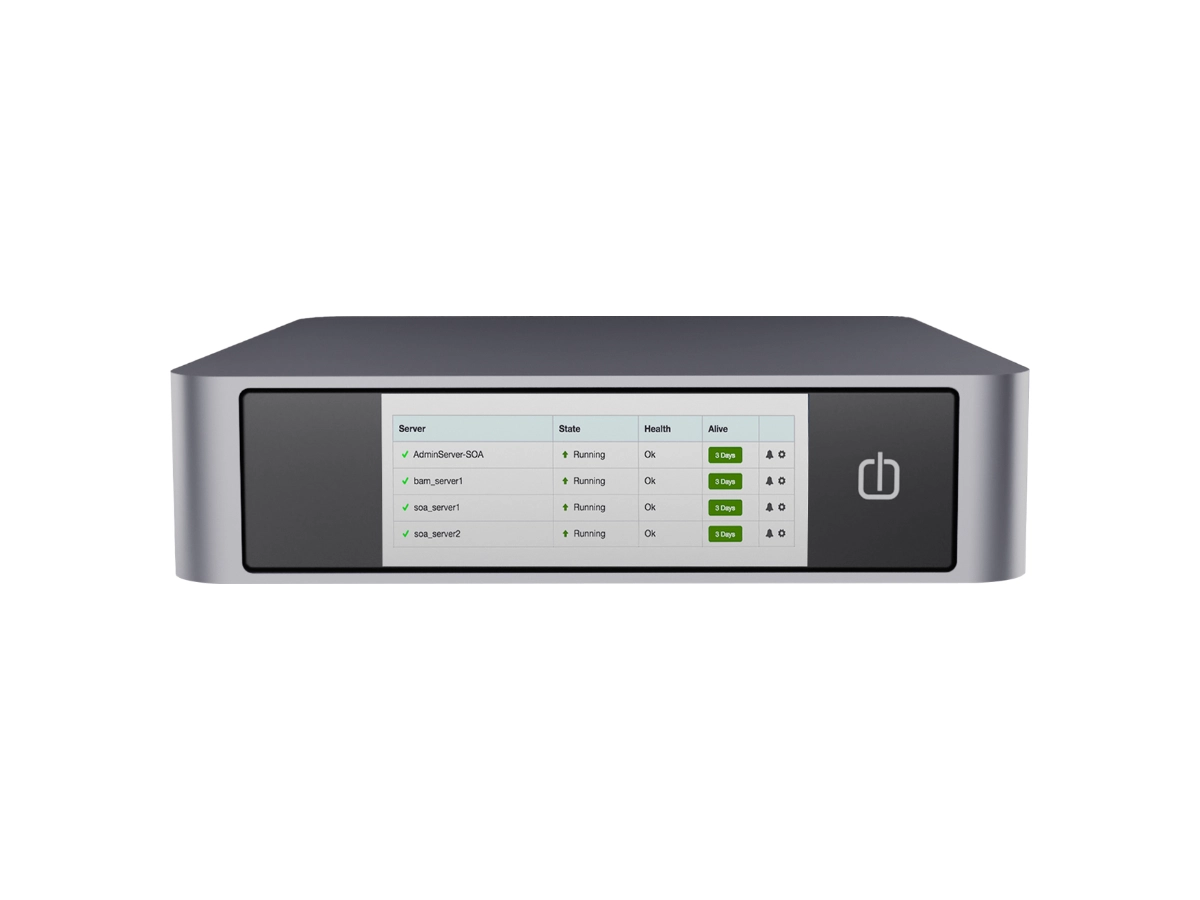

| Panel | 3.16-inch capacitive touch screen, resolution 820×320 |
| USB | 2× Type-C (Full funtion:USB3.1-OTG,DP ALT,PD) 1×USB3.0 Host 1×USB2.0 Host |
| HDMI | HDMI2.1 (8K@60fps or 4K@120fps) |
| Wireless | WiFi-6 IEEE802.11 a/b/g/n/ac/ax Bluetooth 5.0 BLE 2.4Ghz/5Ghz dual band channels, 1T1R (option: M.2 slot inside,suport 2230 PCIe wireless module) |
| Ethernet | 1000Mbps RJ45 |
| Audio | 3.5mm headphone jack with stereo audio output and mic input 2× 8Ω/2W speakers inside |
| RTC | CR1220 Lithium Battery, 3V/38mAh |
| Button | Capacitive touch power botton with red/green LEDs |
| Power Supply | Type-C PD 12V/2A |
| OS | Linux 5.10 (option:Linux6.10) |
| Android12/Ubuntu22.04/Debian11 | |
| Dimensions | 160mm × 160mm × 38mm |
| Weight | 820g |
| Power Consumption | Idle: 1.35W (12V/110mA) Typical: 4.8W (12V/400mA) Max: 20W (12V/1700mA) |

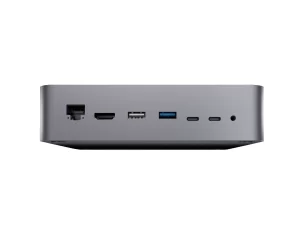

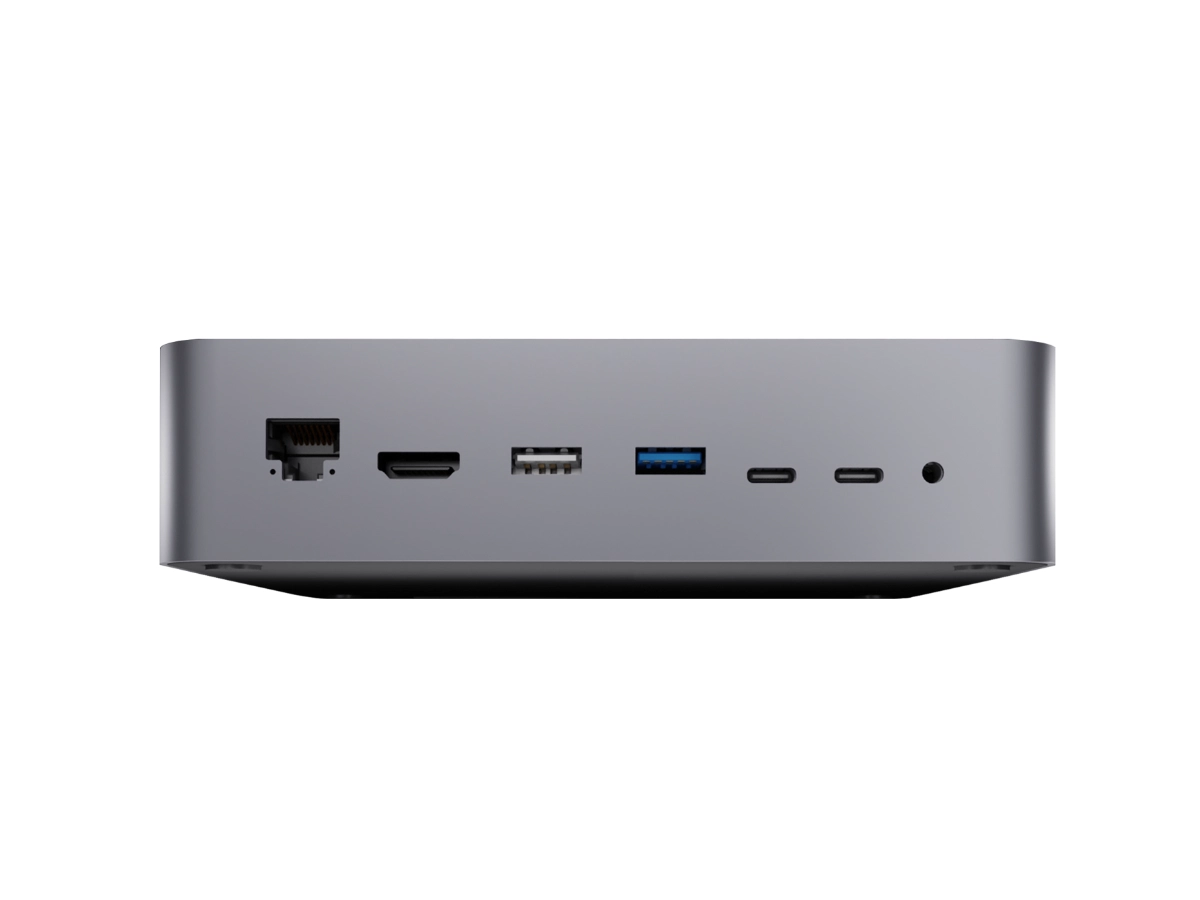

| External Interfaces | 2×Type-C 1×USB3.0 1×USB2.0 1×HDMI2.1 1×RJ45 1×3.5mm headphone jack |
| Environmental Conditions | Operating Temperature: 0℃ ~ 60℃ Storage Temperature: -20℃ ~ 70℃ Humidity: 10% ~ 90% (non-condensing) |
