M2
Rockchip RK3588S ARM Mini PC AI box with 6 Tops NPU & 8K Display
USD $139.00 – $174.90
Fast shipping & 1W+ Sold
Rockchip RK3588S Quad-Core A76+A55 ARM Mali-G610 MC4 , 6.0 TOPs NPU
∞
Sold
7x24 Hours
Technical Support
1 V 1
Service
Product Highlights:
- 8nm process, Quad-core ARM 64-bit, 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz
- ARM Mali-G610 MC4, embedded high performance 2D image acceleration module
- 6.0 TOPs NPU, enable various AI applications
- 8K video codec, 8K@60fps display out
- Linux 5.10 (option:Linux6.10), Android12, Debian11, Ubuntu22.04
Matching package
USD $169.00 – $204.90
Fast shipping & 1W+ Sold
M2
Key features
- 8nm process, quad-core Cortex-A76 + quad-core Cortex-A55
- ARM Mali-G610 MC4 GPU, embedded high performance 2D image acceleration module
- 6.0 TOPs NPU, enable various AI applications
- 8K video codec, 8K@60fps display out
- Rich Display Interface, multi-screen display
- Super 32MP ISP with with HDR&3DNR, multi-camera inputs
- Rich high-speed interfaces (PCIe, TYPE-C, SATA, Gigabit ethernet)
- Linux 5.10 (option:Linux6.10), Android 12 / Ubuntu22.04 / Debian11
DETAIL SPEC
| CPU | Rockchip RK3588S, 8nm proces Quad-core ARM 64-bit 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2. High performance 2D image acceleration |
| NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications |
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps encoding: H.265/H.264 Support 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding at the same time |
| DDR | LPDDR4X 8GB (option: 4/16/32GB) 2133MHz, 64-bit |
| eMMC5.1 | 128GB (option: 64/256/512GB) |
| Panel | 1.47-inch screen, resolution 320×172 |
| USB Ports | 1×Type-C (Full funtion:USB3.1-OTG,DP ALT,PD) 1×USB3.0 Host 1×USB2.0 Host |
| HDMI | HDMI2.1 (8K@60fps or 4K@120fps) |
| Wireless | WiFi-6 IEEE802.11 a/b/g/n/ac/ax Bluetooth 5.0 BLE 2.4Ghz/5Ghz dual band channels, 1T1R |
| Ethernet | 1000Mbps RJ45 |
| Audio | 3.5mm headphone jack with stereo audio output and mic input 2× 8Ω/2W speakers inside |
| RTC | 3V 3.4mAh, Lithium Rechargeable Battery |
| Button | Capacitive touch power botton with red/green LEDs |
| Power Supply | Type-C PD 12V/2A |
| OS | Linux 5.10 (option:Linux6.10) Android12/Ubuntu22.04/Debian11 |
| Dimensions | 95mm × 95mm × 26mm |
| Weight | 300g |
| Power Consumption | Idle: 0.84W (12V/60mA) Typical: 4.2W (12V/360mA) Max: 18W (12V/1500mA) |

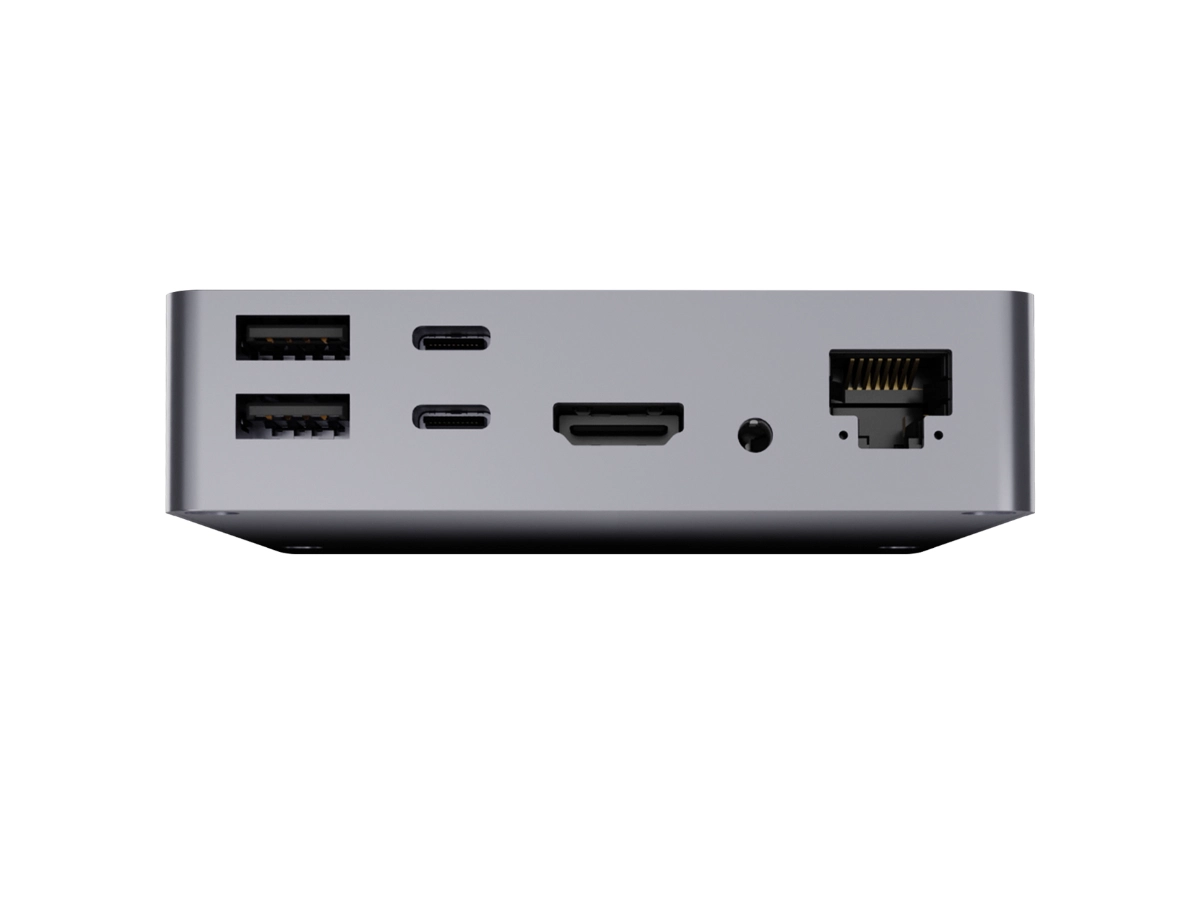

| External Interfaces | 1×Type-C 1×USB3.0 1×USB2.0 1×HDMI2.1 1×RJ45 1000Mbps Ethernet 1×3.5mm headphone jack |
| Environmental Conditions | Operating Temperature: 0℃ ~ 60℃ Storage Temperature: -20℃ ~ 70℃ Humidity: 10% ~ 90% (non-condensing) |
