PX30
Cortex-M4F up to 400MHz
USD Bulk Pricing
Fast Shipping & 1W+ Sold
Rockchip PX30 Quad-Core ARM Cortex-A35
Cadence Tensilica HiFi3 up to 600MHz
∞
Sold
7x24 Hours
Technical Support
1 V 1
Service
Product Highlights:
- Processor: Cortex-M4F operating at a maximum of 400MHz
- DSP: Cadence Tensilica HiFi3 reaching up to 600MHz
- Display: MCU/SPI LCD Interface and MIPI LCD Interface (RK2108D)
- Embedded 1MB SRAM, 512KB DTCM, boot capability from SPI Nor flash, compatibility with EMMC, SD/MMC cards, SPI Nand flash, and support for PSRAM (RK2108D)
- Connectivity: DVP sensor interface, USB 2.0 device, SPI, UART, I2C, PDM, and I2S interfaces I2S
Quote
Matching package
USD Bulk Pricing
Fast Shipping & 1W+ Sold
USD Bulk Pricing
Fast Shipping & 1W+ Sold
USD Bulk Pricing
Fast Shipping & 1W+ Sold

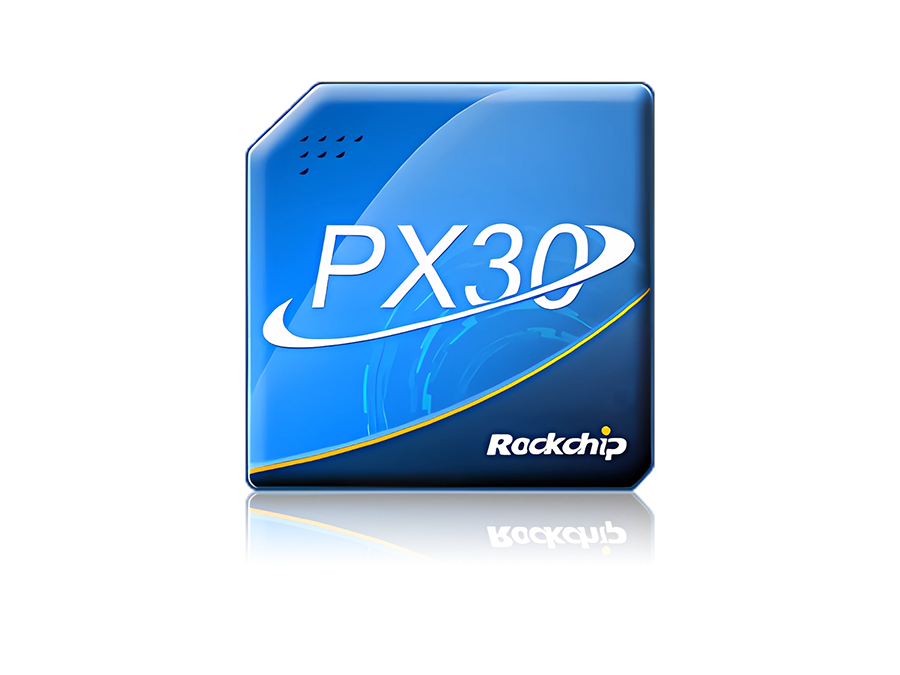

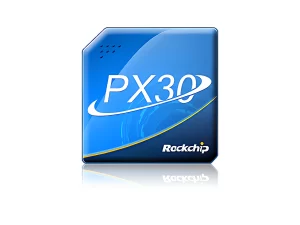

Rockchip PX30
Key features
- Quad-core Cortex-A35
- Mali-G31 MP2 GPU
- DDR4/DDR3/DDR3L/LPDDR3/LPDDR2
- 1080P H.265/H.264/VC-1/MPEG/VP8 video decoder
- 1080P H.264/VP8 video encoder
- MIPI-DSI/LVDS/RGB interface, dual VOP
- 1x8ch I2S/TDM, 1x8ch PDM, 2x2ch I2S
The Rockchip PX30 is a high-performance quad-core application processor engineered for personal mobile internet devices and various digital multimedia applications. It features multiple powerful hardware engines designed to optimize performance for advanced applications. The PX30 supports nearly full-format H.264 decoding at 1080p@60fps and includes H.264 encoding at 1080p@30fps, along with high-quality JPEG encoding and decoding. Its integrated ARM G31-2EE GPU ensures full compatibility with OpenGL ES 1.1/2.0/3.2, DirectX 11 FL9_3, OpenCL 2.0, and Vulkan 1.0. A dedicated 2D hardware engine enhances display performance and guarantees smooth operation. Additionally, the PX30 supports high-bandwidth external memory interfaces including DDR3, DDR3L, DDR4, LPDDR2, and LPDDR3, accommodating demanding memory requirements.
DETAIL SPEC
| CPU | Quad-Core ARM Cortex-A35 |
| GPU | Mali-G31 GPU, support OpenGL ES3.2, Vulkan 1.0, OpenCL 2.0 |
| High-performance dedicated 2D processor | |
| Multi-Media | Multi-format 1080P 60fps video decoders (H.265, H.264, VC-1, MPEG-1/2/4, VP8) |
| 1080P video encoding for H.264, VP8 | |
| Display | Support RGB/LVDS/MIPI-DSI, resolution up to 1920*1080 |
| Support dual VOP | |
| Memory | 32bits DDR4-1600/DDR3-1600/DDR3L-1600/LPDDR3-1600/LPDDR2-1066 |
| Support MLC NAND, eMMC 4.51, Serial NOR FLASH | |
| Connectivity | MIPI CSI and DVP Sensor interface, built-in 8M ISP |
| Support 1x8ch I2S/TDM, 1x8ch PDM, 2x2ch I2S/PCM | |
| Support 100M RMII | |
| Support SDIO3.0, USB2.0 HOST&OTG, 4xI2C, 6xUART, 2xSPI, 8xPWM |
