RK3229
Quad-Core Cortex-A7
USD Bulk Pricing
Fast Shipping & 1W+ Sold

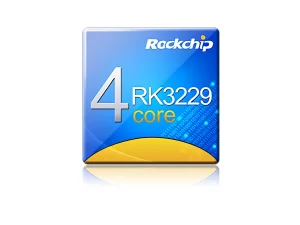

Rockchip RK3229 Quad-Core Cortex-A7
Mali 400MP GPU
∞
Sold
7x24 Hours
Technical Support
1 V 1
Service
Product Highlights:
- Processor: Quad-Core Cortex-A7 architecture with a maximum frequency of 1.5GHz
- Graphics: Mali 400MP GPU supporting OpenGL ES 1.1 and 2.0 standards
- Display Capabilities: HDMI 2.0 output supporting 4K resolution at 60Hz with HDCP 1.4/2.2, along with CVBS output
- Memory Options: 32-bit DDR3-1600/DDR3L-1600, LPDDR3-1333, LPDDR2-1066; compatible with MLC NAND, eMMC 4.51, and Serial NOR Flash for booting
- Connectivity Features: Dual SDIO 3.0 ports, 8-channel I2S interface supporting both RX and TX, integrated CVBS, HDMI, Ethernet MAC and PHY, S/PDIF, audio codec, USB interfaces, and I2C/UART/SPI support.
Quote
Matching package
USD Bulk Pricing
Fast Shipping & 1W+ Sold
USD Bulk Pricing
Fast Shipping & 1W+ Sold
Rockchip RK3229
Key features
- Quad-core Cortex-A7 up to 1.5GHz
- Mali-400MP2 GPU
- DDR3/DDR3L/LPDDR2/LPDDR3
- 4K UHD H265/H264/VP9
- BT.2020/BT.709
- H264 encoder
- TS in/CSA 2.0
- USB 2.0
- HDMI 2.0 with HDCP 2.2
- FE PHY/Audio DAC/CVBS/RGMII
- TrustZone/TEE/DRM
The RK3229 is a quad-core system-on-chip (SoC) developed by Rockchip. It is designed for multimedia and IoT applications. The chip features four ARM Cortex-A7 CPU cores, typically clocked at up to 1.5 GHz, and includes a Mali-400 MP2 GPU. It also provides basic graphics processing for displays and video playback.
The RK3229 is an affordable, low-power chip suitable for entry-level smart devices. Offering decent performance for media playback and light computing tasks. It is less powerful than newer Rockchip SoCs like the RK3328 or RK3566.
DETAIL SPEC
| Process | 28nm |
| CPU | Quad-Core Cortex-A7,up to 1.5GHz |
| GPU | Mali400MP, Support OpenGL ES1.1/2.0 |
| Multi-Media | 4K VP9 and 4K 10bits H265/H264 video decode, up to 60fps |
| 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) | |
| 1080P video encoder for H.264 and VP8 | |
| Display | HDMI 2.0 for 4K@60Hz with HDCP 1.4/2.2 |
| CVBS output | |
| Security | ARM TrustZone (TEE), Secure Video Path, Cipher Engine, Secure boot |
| Memory | 32bit DDR3-1600/DDR3L-1600/LPDDR3-1333/LPDDR2-1066 |
| Support MLC NAND, eMMC 4.51, Serial NOR Flash booting | |
| Connectivity | Dual SDIO 3.0 interface |
| 8 channels I2S interface, supports 8 channels RX or TX | |
| Embed CVBS、HDMI、Ethernet MAC and PHY、S/PDIF、Audio Codec、USB,I2C/Uart/SPI | |
| Package | BGA316 14X14, 0.65mm pitch |
| State | MP Now |
