RK3288
Quad-Core Cortex-A17
USD Bulk Pricing
Fast Shipping & 1W+ Sold

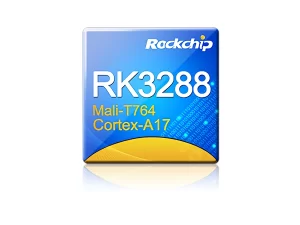

Rockchip RK3288 Quad-Core Cortex-A17
Mali-T764 GPU
∞
Sold
7x24 Hours
Technical Support
1 V 1
Service
Product Highlights:
- CPU: Quad-Core Cortex-A17, reaching up to 1.8GHz (compatible with RK3288-C/CG/K)
- GPU: Mali-T764, supports AFBC (ARM Frame Buffer Compression), and supports OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX 9.3.
- Display: Supports RGB, Dual LVDS, Dual MIPI-DSI, and eDP interfaces, with resolutions up to 3840×2160, 4K@60Hz with HDCP 1.4/2.2.
- Memory: Dual-channel 64-bit DDR3-1333, DDR3L-1333, or LPDDR2-1066; supports MLC NAND and eMMC 4.51.
- Connectivity: Includes embedded 13M ISP, MIPI CSI-2, DVP interfaces, HDMI, Ethernet MAC, S/PDIF, USB, I2C, I2S, UART, SPI, and PS2. PS2
Quote
Matching package
USD Bulk Pricing
Fast Shipping & 1W+ Sold
USD Bulk Pricing
Fast Shipping & 1W+ Sold
USD Bulk Pricing
Fast Shipping & 1W+ Sold
Rockchip RK3288
Key features
- Quad-core Cortex-A17 processor up to 1.8GHz (available on RK3288-C/CG/K)
- Mali-T764 GPU
- Dual-channel DDR3, DDR3L, LPDDR2, or LPDDR3 RAM.
- Supports 4K UHD H265/H264.
- Compatible with BT.2020 and BT.709 standards
- Includes H264 encoder
- TS in/CSA 2.0 support
- Supports USB 2.0
- HDMI 2.0 with HDCP 2.2 support.
- MIPI, eDP, LVDS, RGMII interfaces
- Features TrustZone, TEE, and DRM security mechanisms
The Rockchip RK3288 is an ARM-based SoC made by Rockchip. Introduced in August 2014, it was the first to include a 32-bit ARM Cortex-A17 processor. This quad-core chip features a NEON coprocessor and hardware for accelerating video and 3D graphics. It is typically used in different Chromebooks and other devices that require low power and performance.
DETAIL SPEC
| Process | 28nm |
| CPU | Quad-Core Cortex-A17, up to 1.8GHz (for RK3288-C/CG/K) |
| GPU | Mali-T764 GPU, Supports AFBC (ARM Frame Buffer Compression) |
| Support OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3 | |
| High-performance dedicated 2D processor | |
| Multi-Media | 4K 10bits H265/H264 video decoders |
| 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) | |
| 1080P video encoder for H.264 and VP8 | |
| Video post processor: de-interlace, de-noise, enhancement for edge/detail/color | |
| Display | Support RGB/Dual LVDS/Dual MIPI-DSI/eDP interface, up to 3840*2160 resolution. |
| HDMI 2.0 for 4K@60Hz with HDCP 1.4/2.2 | |
| Security | ARM TrustZone (TEE), Secure Video Path, Cipher Engine, Secure boot |
| Memory | Dual-channel 64bit DDR3-1333/DDR3L-1333/LPDDR2-1066 |
| Support MLC NAND, eMMC 4.51 | |
| Connectivity | Embedded 13M ISP, MIPI CSI-2, and DVP interface |
| Dual SDIO 3.0 interface | |
| TS in/CSA2.0 ,support DTV function | |
| Embed HDMI, Ethernet MAC, S/PDIF, USB, I2C, I2S, UART, SPI, PS2 | |
| Package | BGA636 19X19, 0.65mm pitch |
| State | MP Now |
