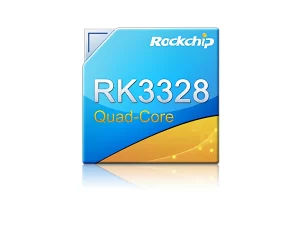

RK3328
Quad-Core Cortex-A53
USD Bulk Pricing
Fast Shipping & 1W+ Sold
Rockchip RK3328 Quad-Core Cortex-A53
Mali-450MP2, Support OpenGL ES1.1/2.0
∞
Sold
7x24 Hours
Technical Support
1 V 1
Service
Product Highlights:
- CPU: Quad-Core Cortex-A53
- GPU: Mali-450MP2, supports OpenGL ES 1.1/2.0
- Multimedia: Capable of decoding 4K VP9 and 4K 10-bit H.265/H.264 videos at up to 60fps; includes a 1080P video encoder for H.264 and H.265
- Display: HDMI 2.0a supporting 4K@60Hz with HDCP 1.4/2.2; supports conversion between Rec.2020 and Rec.709
- Connectivity: I2C, UART, SPI, SDIO 3.0, USB 2.0 and USB 3.0; embedded CVBS, HDMI, Ethernet MAC and PHY, S/PDIF, Audio DAC
Quote
Matching package
USD Bulk Pricing
Fast Shipping & 1W+ Sold
USD Bulk Pricing
Fast Shipping & 1W+ Sold

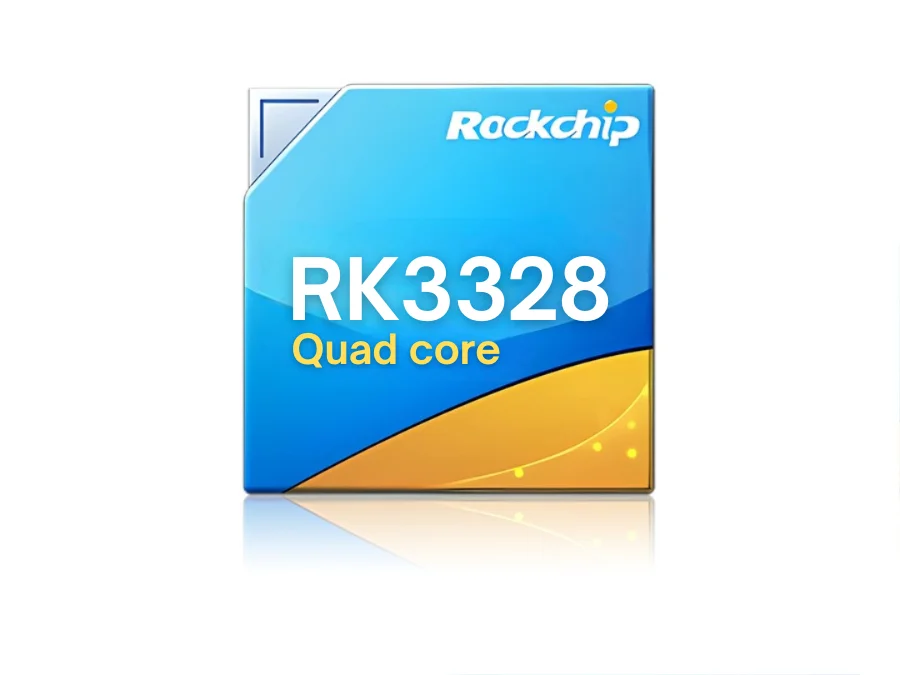

Rockchip RK3328
Key features
- Quad-core Cortex-A53
- Mali-450MP2 GPU
- DDR3/DDR3L/LPDDR3/DDR4
- 4K UHD H265/H264/VP9
- HDR10/HLG
- H265/H264 encoder
- TS in/CSA 2.0
- USB3.0/USB2.0
- HDMI 2.0a with HDCP 2.2
- FE PHY/Audio DAC/CVBS/RGMII
- TrustZone/TEE/DRM
The Rockchip RK3328 is a highly integrated and energy-efficient system on a chip (SoC) designed specifically for 4K HDR over-the-top (OTT) and Internet Protocol Television (IPTV) applications. It supports HDR10 and HLG HDR standards, in addition to 4K 10-bit video decoding at 30 frames per second (fps) for H.264 and 4K 10-bit decoding at 60 fps for H. 265.
Featuring a range of high-performance interfaces, including multi-channel HDMI 2.0a outputs and a television encoder, the quad-core GPU provides excellent high-resolution visuals and an exceptional gaming experience.
DETAIL SPEC
| CPU | Quad-Core Cortex-A53 |
| GPU | Mali-450MP2, Support OpenGL ES1.1/2.0 |
| Memory | 32bit DDR3-1866/DDR3L-1866/LPDDR3-1866/DDR4-2133 |
| Support eMMC 4.51, SDCard, SPI Flash | |
| Multi-Media | 4K VP9 and 4K 10bits H265/H264 video decode, up to 60fps |
| 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) | |
| 1080P video encoder for H.264 and H.265 | |
| Video post processor: de-interlace, de-noise, enhancement for edge/detail/color | |
| Support HDR10 , HLG HDR, and Support conversion between SDR and HDR | |
| Display | HDMI 2.0a for 4K@60Hz with HDCP 1.4/2.2 |
| Support conversion between Rec. 2020 and Rec. 709 | |
| Security | ARM TrustZone (TEE), Secure Video Path, Cipher Engine, Secure boot |
| Connectivity | I2C/UART/SPI/SDIO3.0/USB2.0/USB3.0 |
| 8 channels I2S/PDM interface, supports 8 channels of mic array | |
| Embedded CVBS、HDMI、Ethernet MAC and PHY、S/PDIF、Audio DAC | |
| TS in/CSA2.0 ,support DTV function | |
| Package | BGA316 14X14, 0.65mm pitch |
| State | MP Now |
