RK3399Pro
Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU
USD Bulk Pricing
Fast Shipping & 1W+ Sold
Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, Mali-T860MP4 GPU
∞
Sold
7x24 Hours
Technical Support
1 V 1
Service
Product Highlights:
- CPU: Big.Little architecture with Dual Cortex-A72 and Quad Cortex-A53, 64-bit processor.
- GPU: Mali-T860, supporting OpenGL ES 1.1/2.0/3.0/3.1 and OpenCL.
- Multimedia: 4K VP9 and 4K 10-bit H265/H264 video decoders, up to 60fps.
- Display: HDMI 2.0a supporting 4K at 60Hz with HDCP 1.4/2.2, and dual-channel MIPI-DSI (4 lanes per channel).
- Interfaces: Compatible with USB 2.0, USB 3.0, PCIe 3.0, PCIe 2.1, SATA 3.0, and QSGMII.
Quote
Matching package
USD Bulk Pricing
Fast Shipping & 1W+ Sold

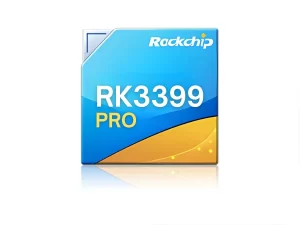

Rockchip RK3399Pro
Key features
- Dual-core Cortex-A72 up to 1.8GHz
- Quad-core Cortex-A53 up to 1.4GHz
- Mali-T860MP4 GPU
- NPU up to 3.0TOPS
- Dual-channel DDR3/DDR3L/LPDDR3/LPDDR4
- 4K UHD H265/H264/VP9
- HDR10/HLG
- H264 encoder
- Dual MIPI CSI and ISP
- Dual USB Type-C and USB 2.0
DETAIL SPEC
| CPU | Big.Little architecture featuring a Dual Cortex-A72 and Quad Cortex-A53, 64-bit CPU. |
| The frequency can reach up to 1.8 GHz. | |
| NPU | Support 8-bit/16-bit Inference |
| Support TensorFlow/Caffe Model | |
| GPU | Mali-T860MP4 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 |
| Supports AFBC (ARM Frame Buffer Compression) | |
| Memory | Dual channel DDR3-1866/DDR3L-1866/LPDDR3-1866/LPDDR4 |
| Support eMMC 5.1 with HS400, SDIO 3.0 with HS200 | |
| Multi-Media | 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps |
| 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) | |
| 1080P video encoders for H.264 and VP8 | |
| Video post processor: de-interlace, de-noise, enhancement for edge/detail/color | |
| Display | Dual VOP: one supports 4096×2160 with AFBC supported; the other supports 2560×1600 |
| Dual channel MIPI-DSI (4 lanes per channel) | |
| eDP 1.3 (4 lanes with 10.8Gbps) to support display, with PSR | |
| HDMI 2.0 for 4K 60Hz with HDCP 1.4/2.2 | |
| DisplayPort 1.2 (4 lanes, up to 4K 60Hz) | |
| Supports Rec.2020 and conversion to Rec.709 | |
| Interface | Dual 13M ISP and dual channel MIPI CSI-2 receive interface |
| USB 3.0 with type-C supported | |
| PCIe 2.1 (4 full-duplex lanes ) | |
| Embedded low power MCU for other application | |
| 8 channels I2S supports 8 channels RX or 8 channels TX |
