RK3568
Quad-Core ARM Cortex-A55, up to 2.0GHz
USD Bulk Pricing
Fast Shipping & 1W+ Sold
Rockchip RK3568 Quad-Cortex-A55 ARM G52 2EE
∞
Sold
7x24 Hours
Technical Support
1 V 1
Service
Product Highlights:
- CPU：Quad-Core ARM Cortex-A55, up to 2.0GHz
- GPU：ARM G52 2EE supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1.
- Multimedia: Supports 4K at 60fps H.265/H.264/VP9 decoding and 1080P at 60fps H.265/H.264 encoding.
- Display: Supports multiple displays via eDp, HDMI 2.0, MIPI, LVDS, 24-bit RGB, EBC.
- Interface: Includes USB 2.0, USB 3.0, PCIe 3.0, PCIe 2.1, SATA 3.0, QSGMII.GMII
Quote
Matching package
USD Bulk Pricing
Fast Shipping & 1W+ Sold
USD Bulk Pricing
Fast Shipping & 1W+ Sold
USD Bulk Pricing
Fast Shipping & 1W+ Sold

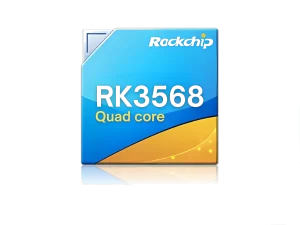

Rockchip RK3568
Key features
- Quad-core Cortex-A55 processor up to 2.0GHz
- Mali-G52 GPU
- 1TOPS NPU
- Supports LPDDR4/LPDDR4X/DDR4/DDR3/DDR3L/LPDDR3 with ECC
- 4KP60 H.265/H.264/VP9 video decoder
- Supports 1080P60 H.264/H.265 video encoding
- 8M ISP with HDR capability
- Dual display interfaces: LVDS, MIPI-DSI, RGB, eDP, HDMI 2.0, EBC
- I2S/TDM: 1×8 channels; PDM: 1×8 channels; I2S: 2×2 channels
- Connectivity options include: USB 3.0 x2, SATA 3.0 x3, PCIe 2.1, QSGMII, PCIe 3.0 with 1×2 lanes, and 2×1 lanes0 1x2Lanes/2x1Lane
The RK3568 is a high-performance, power-efficient quad-core ARM Cortex-A55 processor designed for AIoT, industrial control, and edge computing applications. Built with a 0.8 TOPS NPU for AI acceleration, it enables machine learning tasks such as object detection, voice recognition, and intelligent automation. The chip supports 4K@60fps video decoding and 1080p@60fps encoding, making it ideal for multimedia applications like digital signage, NVRs, and video conferencing.
With versatile connectivity options, including PCIe 3.0, USB 3.0, Gigabit Ethernet, and multiple display interfaces (HDMI 2.0, eDP, MIPI-DSI), the RK3568 ensures seamless integration into embedded systems. It runs on Android, Linux, and Debian, providing developers with flexibility. Whether for industrial PCs, AI cameras, NAS devices, or innovative retail solutions, Rockchip RK3568 delivers robust performance and efficiency.
The RK3568 also features advanced power management, ensuring optimal energy efficiency for battery-operated and low-power devices. Its Mali-G52 GPU enhances graphics performance, supporting OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, and OpenCL 2.0, making it suitable for gaming, AR/VR, and GUI-intensive applications. The processor includes robust security features, such as secure boot, trusted execution environment (TEE), and hardware encryption, which safeguard sensitive data in IoT deployments.
DETAIL SPEC
| CPU | Quad-Core ARM Cortex-A55, with speeds of up to 2.0GHz |
| GPU | ARM G52 2EE |
| Supports OpenGL ES versions 1.1, 2.0, and 3.2; OpenCL 2.0; and Vulkan 1.1 | |
| High-performance dedicated 2D processor | |
| NPU | Supports 1T operations |
| Multi-Media | Supports 4K at 60fps for H.265, H.264, and VP9 decoding. |
| Supports 1080P at 60fps with H.265/H.264 encoding. | |
| Compatible with an 8M ISP and HDR display. | |
| Display | Supports multi-display configurations |
| Supports eDp/HDMI2.0/MIPI/LVDS/24bit RGB/EBC | |
| Interface | Supports USB2.0/USB3.0/PCIE3.0/PCIE2.1/SATA3.0/QSGMII |
