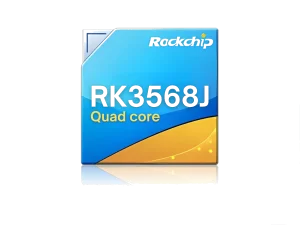

RK3568J
Quad-Core ARM Cortex-A55, up to 2.0GHz
USD Bulk Pricing
Fast Shipping & 1W+ Sold
Rockchip RK3568J Quad-Cortex-A55 ARM G52 2EE
∞
Sold
7x24 Hours
Technical Support
1 V 1
Service
Product Highlights:
- Processor: Equipped with a Quad-Core ARM Cortex-A55 core, capable of reaching speeds up to 2.0GHz.
- Graphics: Features an ARM G52 2EE GPU, supporting OpenGL ES versions 1.1, 2.0, and 3.2, as well as OpenCL 2.0 and Vulkan 1.1 for enhanced graphics performance.
- Multimedia Capabilities: Supports decoding 4K video at 60fps in H.265, H.264, and VP9 formats, and encoding 1080p video at 60fps using H.265 or H.264 codecs.
- Display Connectivity: Enables multiple display options through eDp, HDMI 2.0, MIPI, LVDS, 24-bit RGB, and EBC interfaces.
- Interface Options: Includes a variety of ports such as USB 2.0, USB 3.0, PCIe 3.0, PCIe 2.1, SATA 3.0, and network interfaces like QSGMII and GMII.
Quote
Matching package
USD Bulk Pricing
Fast Shipping & 1W+ Sold
Rockchip RK3568J
Key features
- Quad-core Cortex-A55 processor up to 2.0GHz
- Mali-G52 GPU
- 512MAC NPU
- Supports LPDDR4/LPDDR4X/DDR4/DDR3/DDR3L/LPDDR3 with ECC
- 4KP60 H.265/H.264/VP9 video decoder
- Supports 1080P60 H.264/H.265 video encoding
- 8M ISP with HDR capability
- Dual display interfaces: LVDS, MIPI-DSI, RGB, eDP, HDMI 2.0, T-CON
- I2S/TDM: 1×8 channels; PDM: 1×8 channels; I2S: 2×2 channels
- Connectivity options include: USB 3.0 x2, SATA 3.0 x3, PCIe 2.1, QSGMII, PCIe 3.0 with 1×2 lanes/2x1Lane
The RK3568J is a powerful mid-range system-on-chip (SoC) developed by Rockchip. It is designed for AIoT (AI + IoT), edge computing, and multimedia applications. RK3568J features a quad-core ARM Cortex-A55 CPU and an ARM Mali-G52 2EE GPU. It also has an integrated NPU (Neural Processing Unit) for AI acceleration.
The RK3568J is a versatile chip. Ideal for embedded AI, industrial automation, and smart displays.
DETAIL SPEC
| CPU | Quad-Core ARM Cortex-A55, running at speeds up to 2.0GHz |
| GPU | ARM G52 2EE |
| Supports OpenGL ES versions 1.1, 2.0, and 3.2; OpenCL 2.0; and Vulkan 1.1 | |
| High-performance dedicated 2D processor | |
| NPU | Supports 512MAC NPU |
| Multi-Media | Supports 4K at 60fps with H.265/H.264/VP9 decoding. |
| Supports 1080P at 60fps with H.265/H.264 encoding. | |
| Supports 8M ISP with HDR | |
| Display | Supports multi-display configurations |
| Supports eDp/HDMI2.0/MIPI/LVDS/24bit RGB/T-CON | |
| Interface | Supports USB2.0/USB3.0/PCIE3.0/PCIE2.1/SATA3.0/QSGMII |
