RV1126
Quad core ARM Cortex-A7
USD Bulk Pricing
Fast Shipping & 1W+ Sold

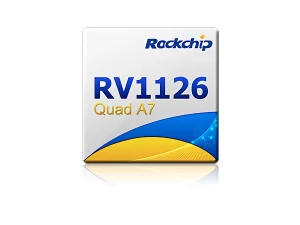

Rockchip RV1126 Quad core ARM Cortex-A7 RISC-V MCU
∞
Sold
7x24 Hours
Technical Support
1 V 1
Service
Product Highlights:
- CPU: Quad core ARM Cortex-A7, RISC-V MCU
- NPU: 2.0Tops, support INT8/ INT16
- Display: MIPI-DSI/RGB interface, up to 1080P60fps
- Memory: 32bit DDR3/DDR3L/LPDDR3/DDR4/LPDDR4, Support eMMC 4.51, SPI Flash, Nand Flash, Support fast booting
- External Interface: RGMII interface with TSO network acceleration, USB 2.0 OTG and USB 2.0 host, Dual SDIO 3.0 interface for Wi-Fi and SD card, 8ch I2S with TDM/PDM, 2ch I2S
OEM Consulting
Matching package
USD Bulk Pricing
Fast Shipping & 1W+ Sold
USD Bulk Pricing
Fast Shipping & 1W+ Sold
RV1126
Key features
- Quad core ARM Cortex-A7 and RISC-V MCU
- 250ms Fast booting
- 2.0Tops NPU
- 14M ISP with 3F HDR
- Up to 3 sensor simultaneous input
- 4K H.264/H.265 encoder and decoder
DETAIL SPEC
| CPU | Quad core ARM Cortex-A7 |
| RISC-V MCU | |
| NPU | 2.0Tops, support INT8/ INT16 |
| Memory | 32bit DDR3/DDR3L/LPDDR3/DDR4/LPDDR4 |
| Support eMMC 4.51, SPI Flash, Nand Flash | |
| Support fast booting | |
| Display | MIPI-DSI/RGB interface，up to 1080P60fps |
| 2D Graphics Engine | Support rotation, x-mirror, y-mirror |
| Support alpha blending | |
| Support scale down/up | |
| Multi-Media | 14M ISP 2.0 with 3F HDR(Line-based/Frame-based/DCG) |
| Support 2*MIPI CSI /LVDS/sub LVDS | |
| DVP interface with BT.656/BT.1120 | |
| 4K H.264/H.265 30fps video encode -3840 x 2160@30 fps+720p@30 fps encoding | |
| 4K H.264/H.265 30fps video decoder -3840 x 2160@30 encoding + 3840 x 2160@30 fps decoding | |
| External Interface | RGMII interface with TSO network acceleration |
| USB 2.0 OTG and USB 2.0 host | |
| Dual SDIO 3.0 interface for Wi-Fi and SD card | |
| 8ch I2S with TDM/PDM, 2ch I2S |
